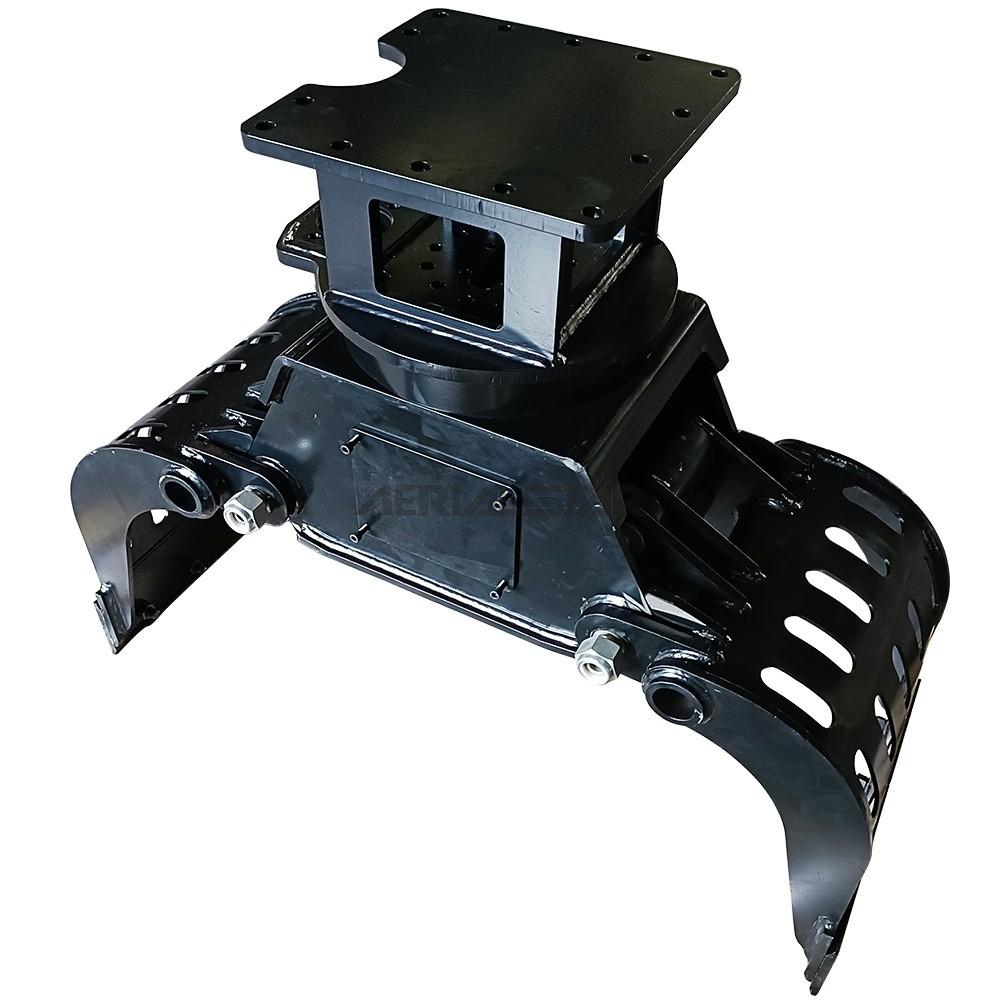

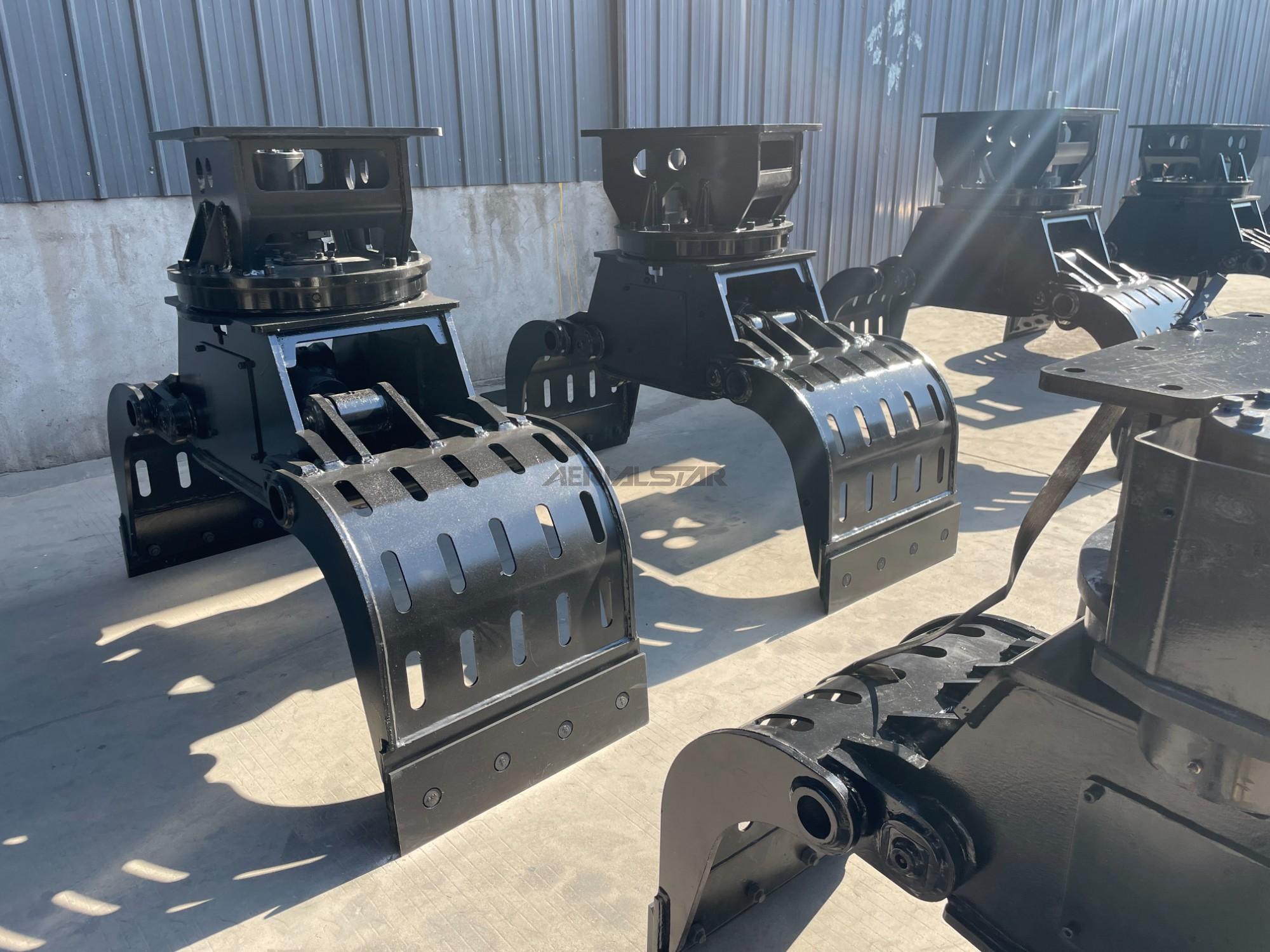

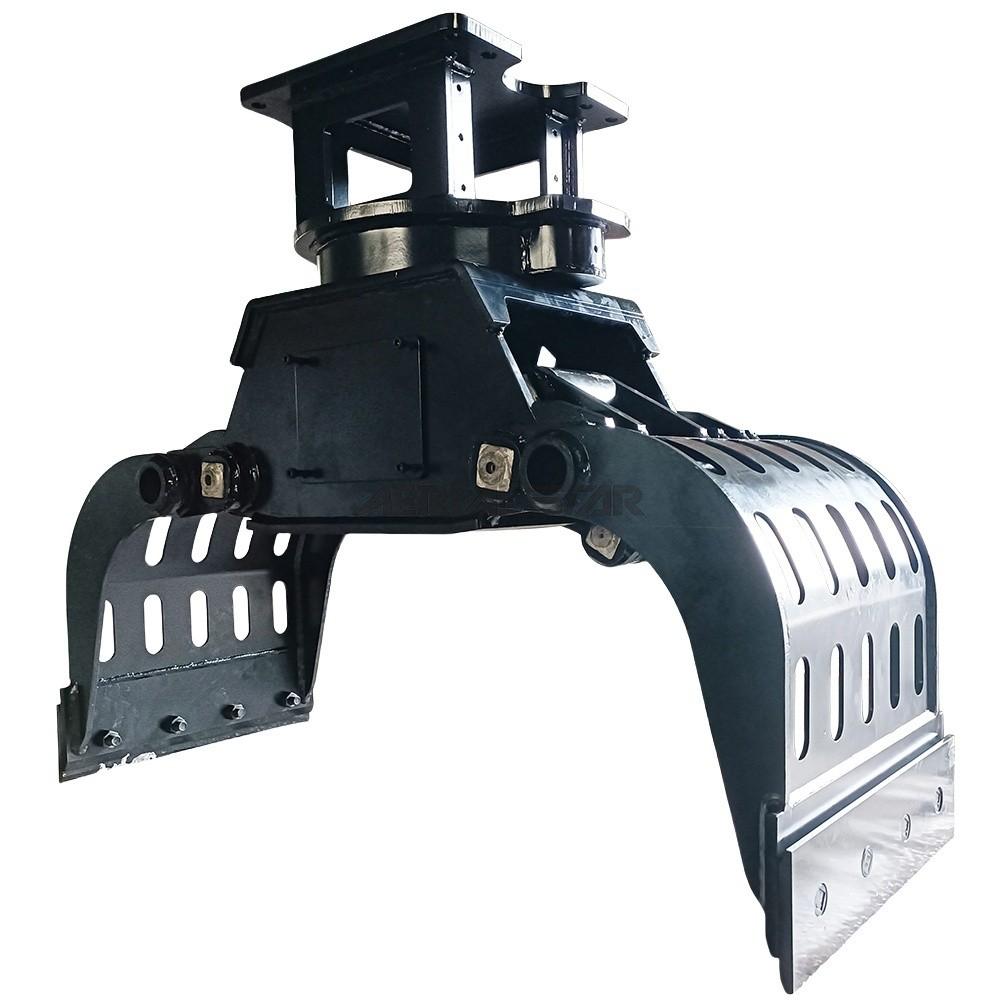

Hydraulic Rock grapple

Hydraulic Rock grapple

Product Item:RG-SERIES
--Built with very high strength steel and reinforced in the right places
that need.
--Good Performance and advanced design.
--Skilled workers to make sure the top class welding.
--Good surface anti-rust treatment and perfect painting.
-- Advanced digital control flame cutting machines and laser cutting
machines, large lapping machines, and protective welding machines
guarantee the quality of our products.
-- Low noise, meet the requirements of environmental protection.
  • Product Detail

Model

T

Weight/kg

Load (Max.)/kg

Working Pressure/bar

Clamp Force/KN

Dimensions/

RG-80

3-5T

80

1000

175

6.3

0.12

RG-100


110

1000

175

7

0.14

RG-120

5-8T

120

1500

175

8.25

0.16

RG-140


205

1500

210

9.2

0.23

RG-170

8-12T

285

2000

210

11

0.26

RG-180


320

2500

210

13.1

0.33

RG-200

15-18T

440

4000

210

13.1

0.48



Type

Hydraulic Type

Weight

about 200-1380 kgs

Materials

Q345+NM400

Package

Pallet

HS Code

84314100
