Product Item：0208 I

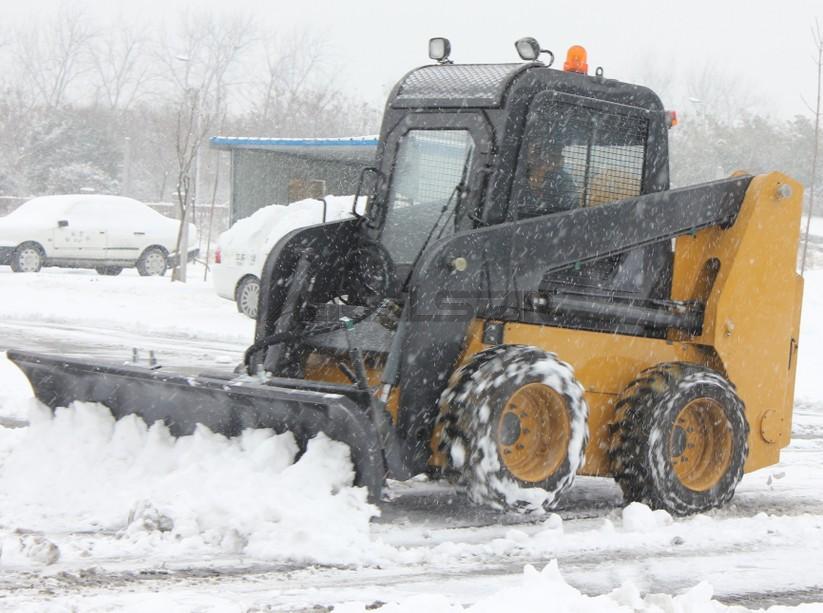

Push the snow shovel using hydraulic control left and right steering, steering Angle of ± 30,
easy to easily and quickly change the direction of snow clearing.To remove thin snow from
sidewalks and car lanes.

Product Detail

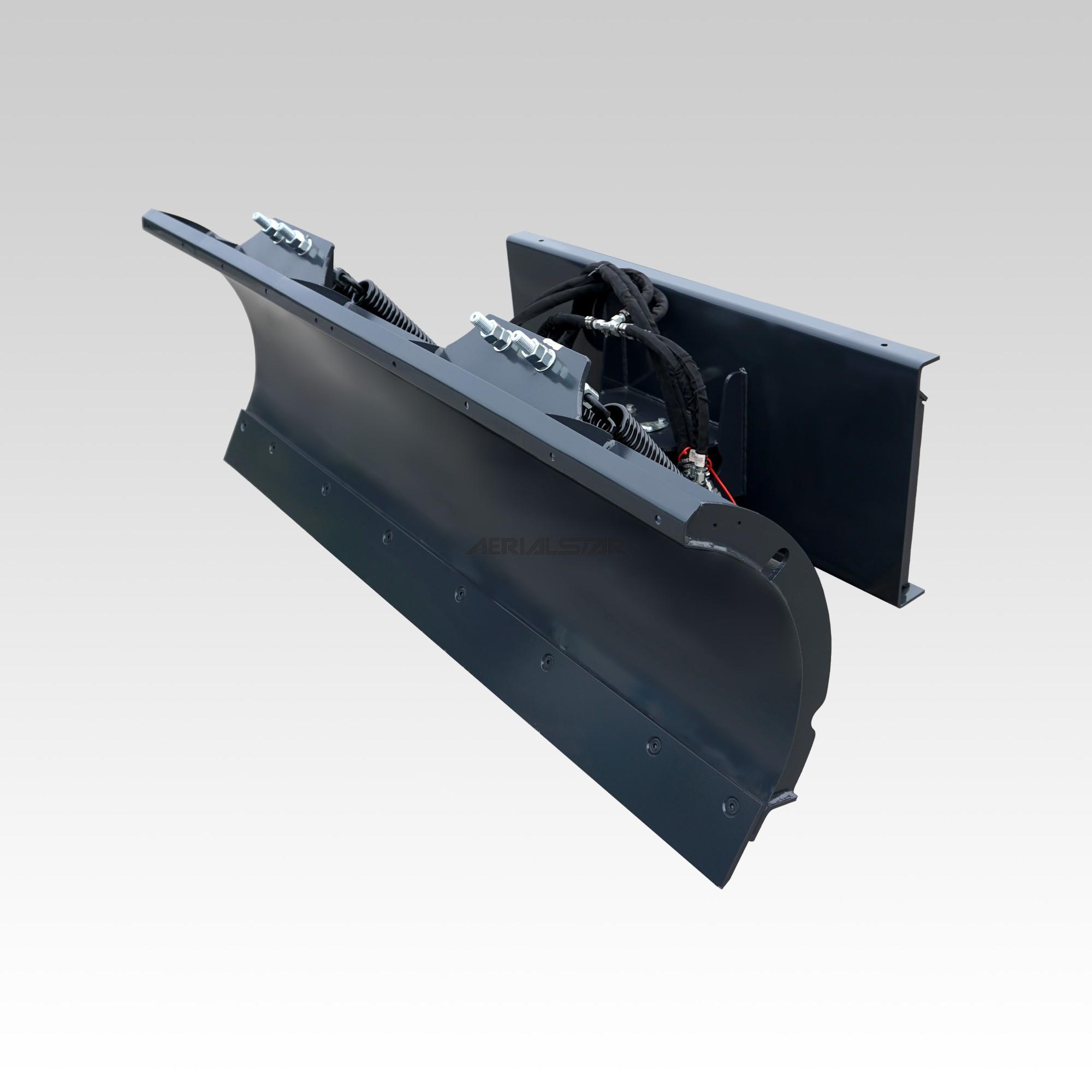

0208I series snow blade technical parameters
Model	020860Ⅰ	020872Ⅰ	020884Ⅰ	020896Ⅰ
Width（mm）	1500	1830	2130	2430
Length（mm）	1010	1010	1010	1010
Height（mm）	635	635	635	635
30 Job Width（mm）	1300	1580	1845	2100
Deflection Angle (fluid control)（°）	±30	±30	±30	±30
Weight(including pendant)（Kg）	280	295	312	325
The height of obstacle avoidance（mm）	≤80	≤80	≤80	≤80
Allow maximum pressure（M pa）	21	21	21	21
Hanging model	Skid steer loader		Skid steer loader /loader
