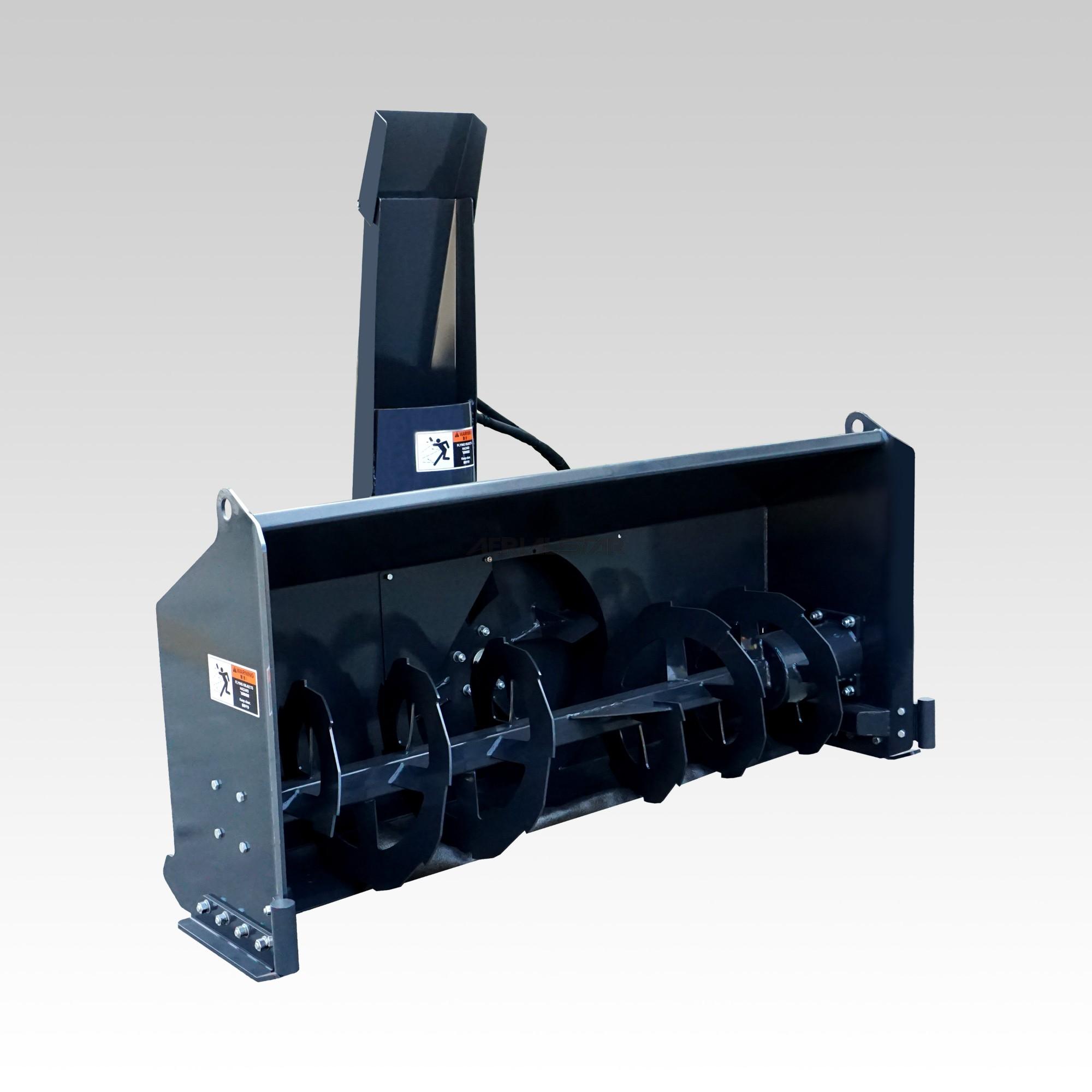

Snow Blower

Home

Attachments

Skid Steer Loader Attachments

Municipal machines and tools

Snow Blower

Product Item：0209H

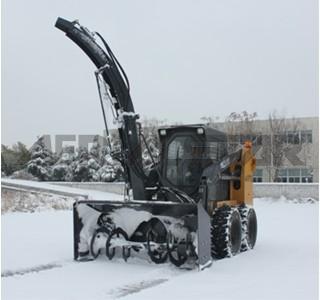

1.	The hydraulic drive accessory is an ideal tool to remove thick snow from lanes,
   sidewalks, and parking lots;
2. 	The snow can be thrown to 12 meters away and adjust the speed of the snow
 throwing machine according to the thickness; when the snow thickness is 500mm,
 the speed is <3 km/h.
3.	It can be used together with snow removal shovel, snow removal rolling brush
 and transport vehicle to realize clearance, collect and install (raise the throwing tube),

Product Detail

Technical parameters of 0209H series snow blower
Model	0209H84	0209H72
Length（mm）	1120	1120
Width（mm）	2200	1896
Total high (low sell standard match)（mm）	1695	1695
Total height (high throw optional)（mm)	3458	3458
Transportation height（mm)	1593（low）/2160（high）	1593（low）/2160（high）
Operating weight (including pendant)（kg）	554（low）/600（high）	520（low）/570（high）
Operate mode	electrohydraulic control	electrohydraulic control
Angle of rotation ()	270(low )/200（high）	270（low）/200（high）
Maximum loading height (high throw optional)（m)	3.3	3.3
The farthest distance to throw snow（m)	12	12
Hydraulic flow（L/min）	120-150	120-150
Allow maximum pressure（Mpa)	20	20
Adapter host (high flow)	Skid steer loader	Skid steer loader
