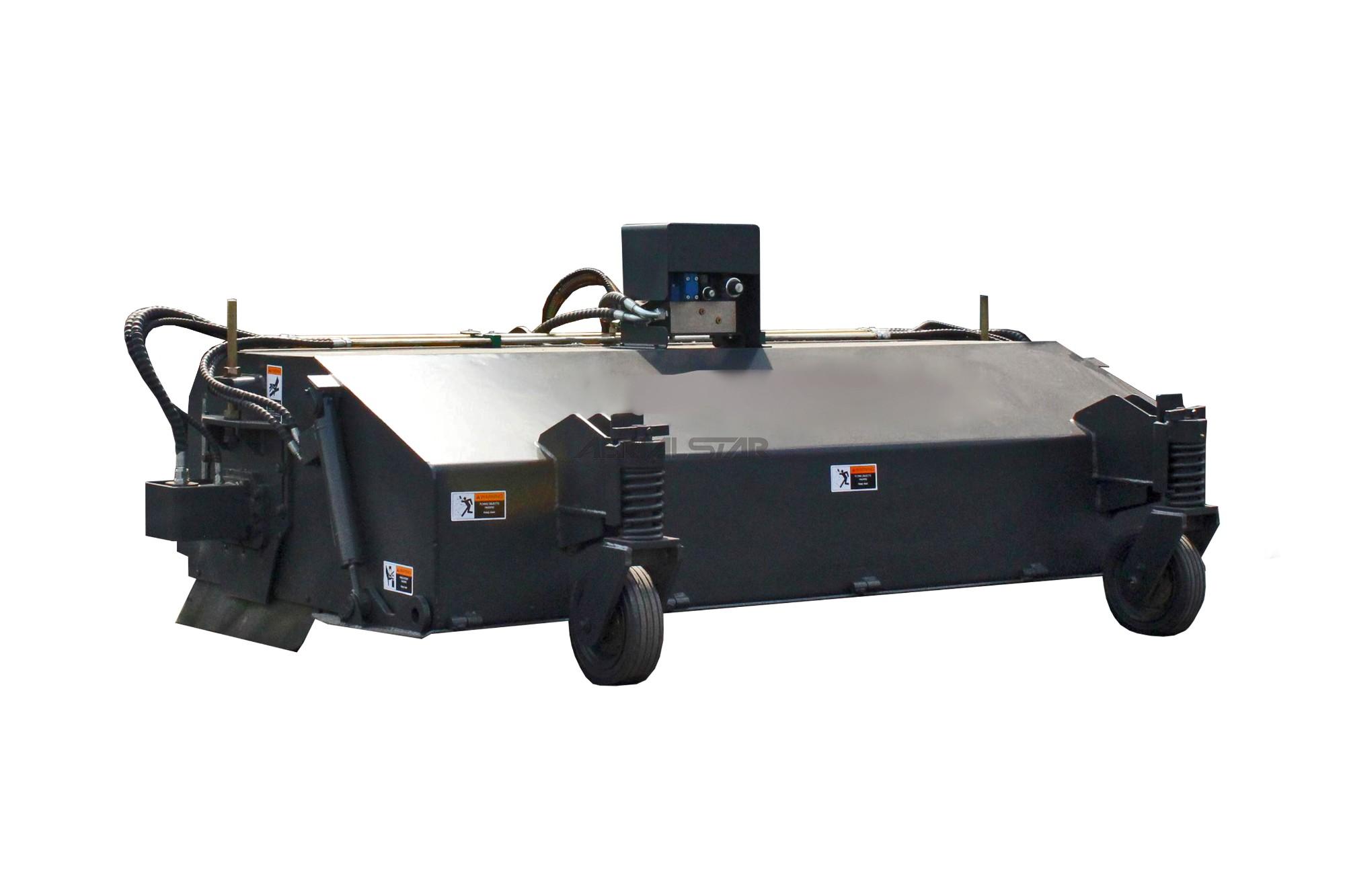

Front-Mounted Broom

Product Item:BM12
The BM12 series Front Mounted Broom is a cleaning tool developed by our company for wheel loaders
 weighing 3 tons or more, which eliminates the single purpose of loader shoveling and transportation
and achieves multiple uses for one machine. The forward direction cleaning method ensures the safety
of operations in complex areas such as parking lots, coal plants, docks, warehouses, and ports. The
large capacity bucket reduces the number of back and forth unloading times and improves clean
  • Product Detail

Technical Parameters

Model

BM12100Ⅱ

BM12110Ⅱ

Overall   length (mm)

2615

2815

Overall width (mm)

3395

3490

Overall   height (mm)

1235

1235

Gross weight (incl. pendant)   (kg)

2070

2260

Hopper capacity (m3)

1.6

2.05

Effective   sweeping width (mm)

2580

2800

Brush roller diameter (mm)

φ800

φ800

Allowable maximum pressure (Mpa)

21

21

Working flow rate (L/min)

180-200

200-240

Working speed (km/h)

5~6.5

5~6.5
