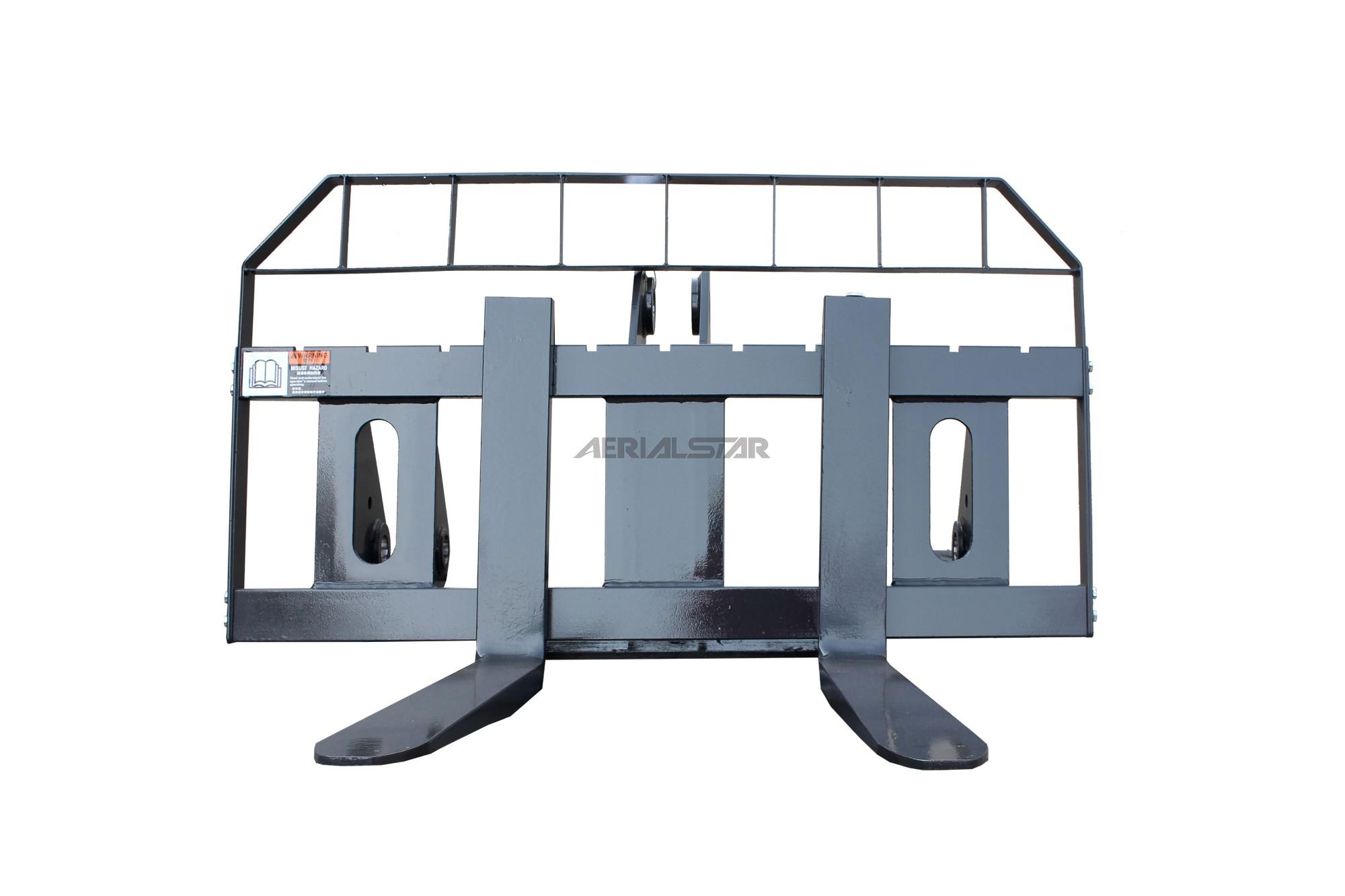

Wheel Loader Fork

Wheel Loader Fork

Product Item:BM04A
This machine can be used for transporting items, and is convenient and fast to use.
 It is widely used in logistics, warehouses, factories, and other occasions.
There are multiple types of fork teeth with lengths ranging from 1070-2000mm to choose from.
  • Product Detail

   Technical   parameters of the fork


model

BM0430

BM0450

BM0420

 total width    (mm)

1610

1900

1500

height (mm)

880

1100

875

Fork length (mm)

1070

1780

1070

Fork tooth thickness (mm)

45

70

45

Fork tooth width   (mm)

120

150

125

Theoretical weight (including pendant)Kg

335

670

330

Adapt loader type

3T

5T

2T
