Wheel Loader Pick-Up Broom

Home

Attachments

Wheel loader Attachments

Wheel Loader Municipal machines and tools

Wheel Loader Pick-Up Broom

Product Item：BM13

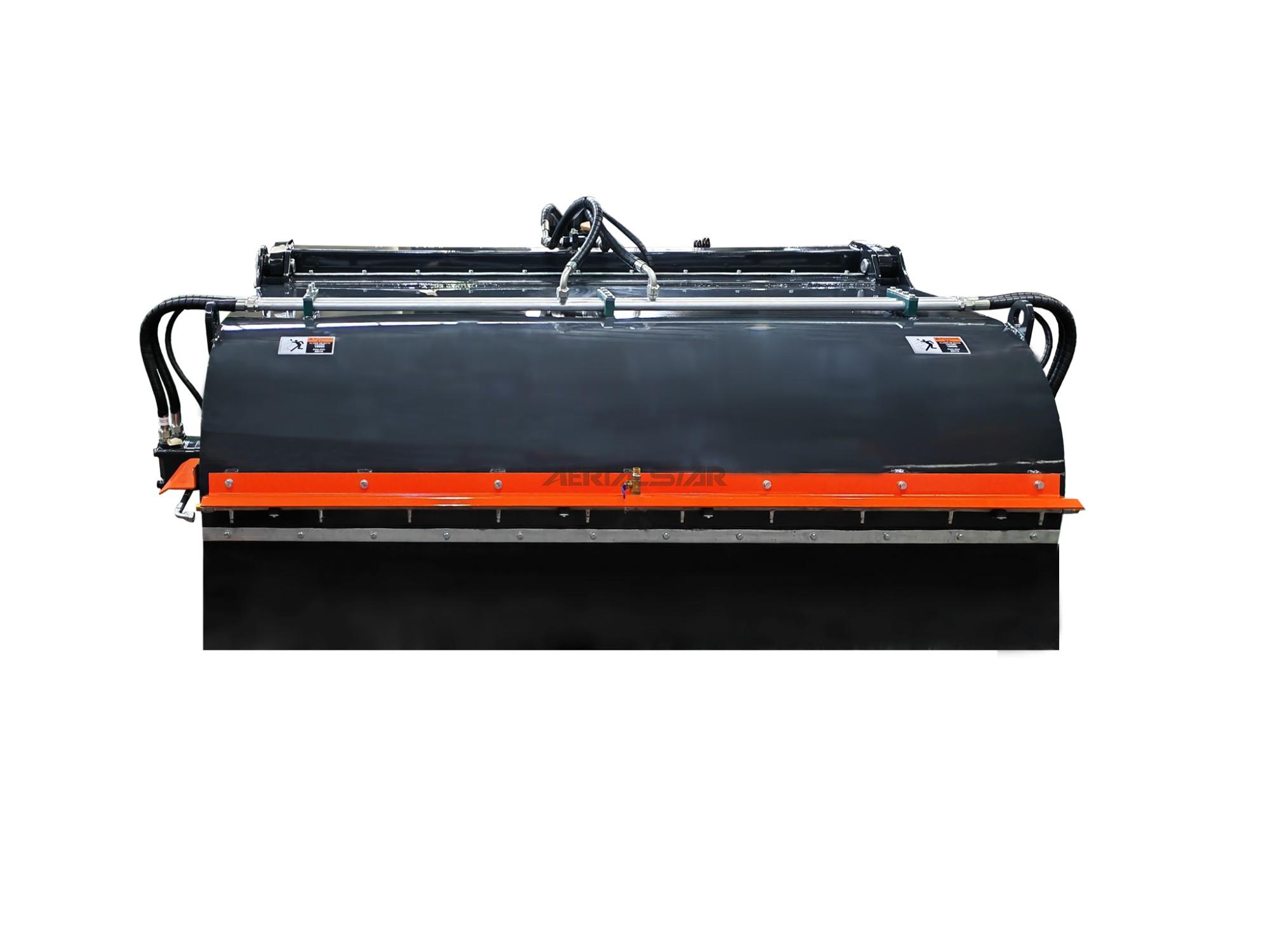

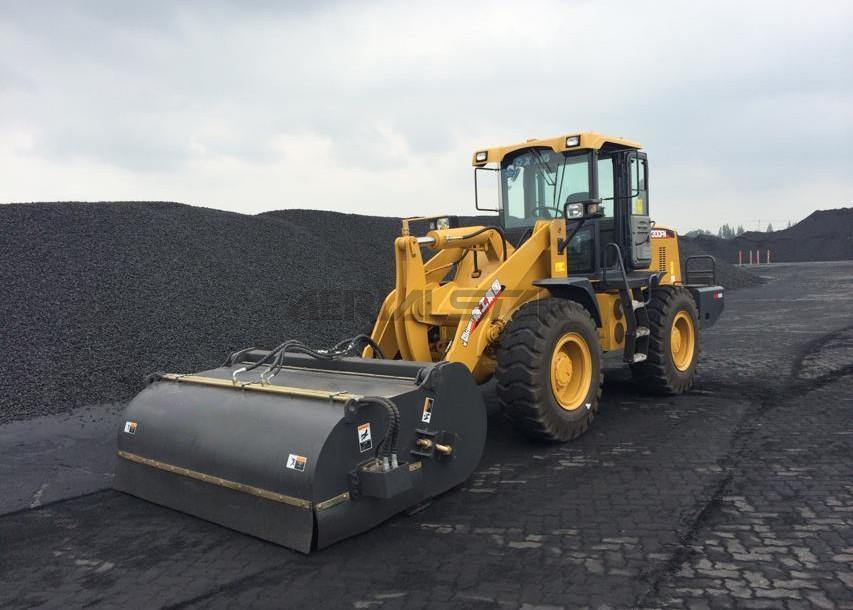

The BM13 series pick-up broom is a cleaning tool designed for wheel loaders  weighing 3 tons or more.
 It is a reverse type sweeper that quickly removes dust, waste, and other debris. It is a rare tool for
large-scale, repetitive cleaning operations.

Product Detail

Technical Parameters
Model	BM13100	BM13110
Overall length (mm)	1950	2297
Overall width (mm)	3012	3465
Overall height (mm)	950	1140
Gross weight (incl. pendant) (kg)	1464	2076
Hopper capacity (m3)	2.6	2.9
Effective sweeping width (mm)	2540	2800
Brush roller diameter (mm)	φ800	φ800
Allowable maximum pressure (Mpa)	21	21
Working flow rate (L/min)	180-200	200-240
Working speed (km/h)	5~6.5	5~6.5
